OM1 OM3 FTTH Fast Connector , Field Termination Sc Apc Quick Connector

Product Categories
Shenzhen damu technology co. LTD
Contact Now

OM1 OM3 FTTH Fast Connector , Field Termination Sc Apc Quick Connector

  • 1
  • 2
  • 3

Brand Name : DAMU

Model Number : DM-F01

Certification : CE ROSH

Place of Origin : China

MOQ : 500

Price : 0.25

Payment Terms : T/T

Supply Ability : 500000/month

Delivery Time : 3-7

Packaging Details : 26cm*44cm*19cm 5.5kg/box

Connector : SC APC

Color : Green

Insertion Loss : ≤0.5dB

Return Loss : ≥50dB

Reusable : ≥10 times

Aoolicable for : Drop cable.Indoor cable

Contact Now

Fast Connector mechanical SC APC UPC Fiber Optic Quick Connector For FTTH Drop Cable Field TerminationOM1 OM3 FTTH Fast Connector , Field Termination Sc Apc Quick ConnectorOM1 OM3 FTTH Fast Connector , Field Termination Sc Apc Quick ConnectorOM1 OM3 FTTH Fast Connector , Field Termination Sc Apc Quick ConnectorOM1 OM3 FTTH Fast Connector , Field Termination Sc Apc Quick ConnectorOM1 OM3 FTTH Fast Connector , Field Termination Sc Apc Quick ConnectorOM1 OM3 FTTH Fast Connector , Field Termination Sc Apc Quick ConnectorOM1 OM3 FTTH Fast Connector , Field Termination Sc Apc Quick Connector

Feature

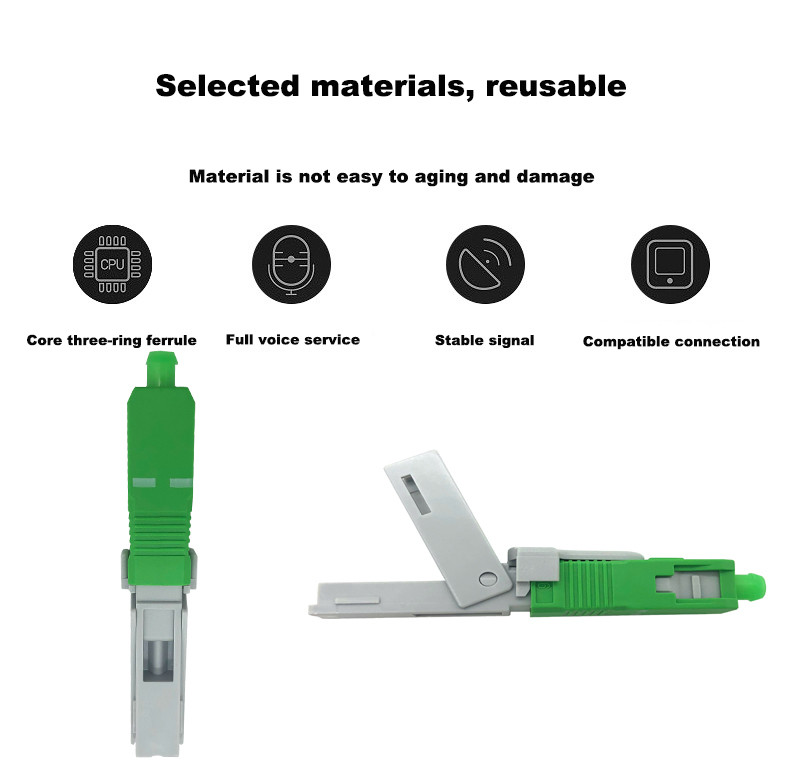

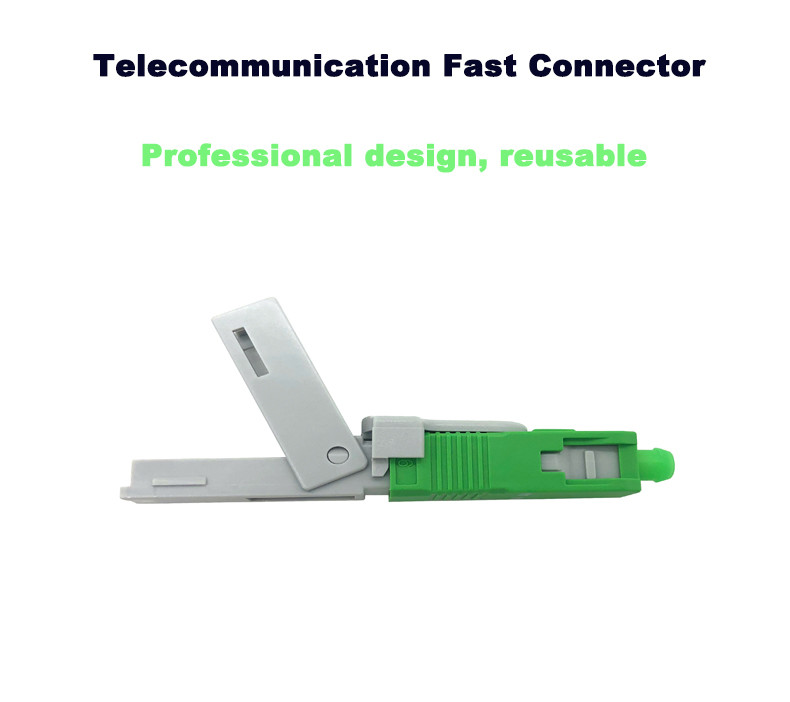

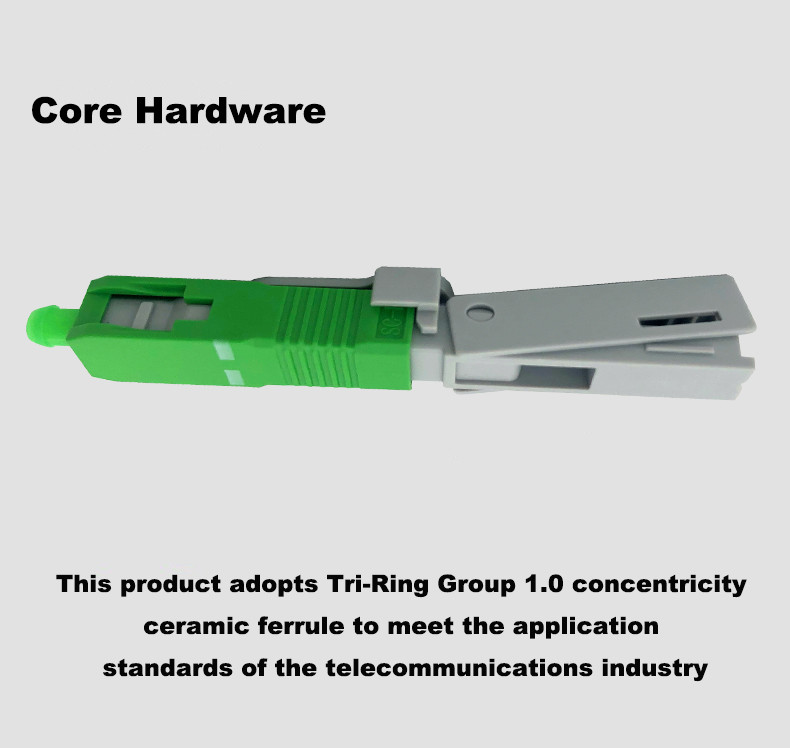

SC fast connector allow you to terminate a fiber in short time. The fast connect

is a pre-polished connector which uses mechanical clamping and aligning of a

cleaved fiber end which is inserted into the connector body. The fast connect

is available in both singlemode andmultimode (OM1 and OM3 10Gig)and a

variety of connector types and can be terminated onto 250um and 900um

coated fibre as well as 2x3 mm and 2x1.6 mm jacketed cord.

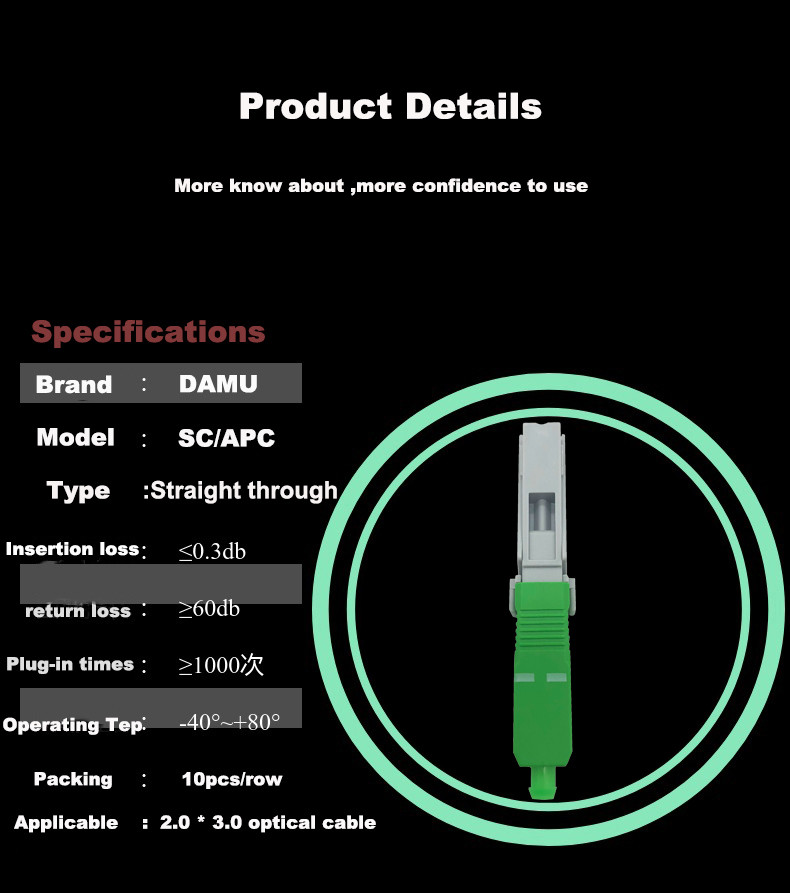

Optical Characteristics

Category Specification Remarks
Aoolicable for Drop cable.Indoor cable
Fiber mode Single mode or Multi mode
Operation time S About 50(no fiber cut)
Insertion Loss dB ≤0.5
Insertion Loss Typical value dB 0.3
Return Loss dB ≥50
Fastening strength of naked fiber N ≥5
Tensile strength N ≥50
Reusable Time ≥10 times
Operating Temperature ℃ -40～+85
On-line tensile strength(20N) dB ΔIL≤0.3
Mechanical durability(500 times) dB ΔIL≤0.3
Drop-off test(drop-off height4m,once per direction,totally 3 times) dB ΔIL≤0.3
Applications
1. Patch panels
2. Distribution frames
3. Maintenance or emergency restoration of fiber networks
4. FTTH Outlets
5. Connection at the desk for LAN environments
6. Fiber Optic Patch Cord & Pigtail
7. Telecommunication Devices
8. Data Communications Networks
9. Optical Fiber LAN and Access Network
10. Industry and Military Applications

Mechanical Performance Requirements

Category

 Specification
Condition IL Variation RL Variation Appearance

Impact

Height: 4m；

1 drop each axis；

3 cycles

≤0.5

≤5

No mechan

ical dama

ge, like deformat

ion, crac

king and

untight

Vibration

Frequency: 10 ～ 50HZ；

Sweep: 45 times / min；

amplitude: 0.75mm；

Duration:30min each axial

≤0.5

≤5

Torsional

Pull:15N； The distance between Loading location and fast connector: L = 22-28cm；Rate:10times / min.

Times: 200

≤0.5

≤5

Tensile

Pull:50N； The distance between Loadi ng location and fast conn

ector: L = 22-28cm；

Duration:1min.

≤0.5

≤5

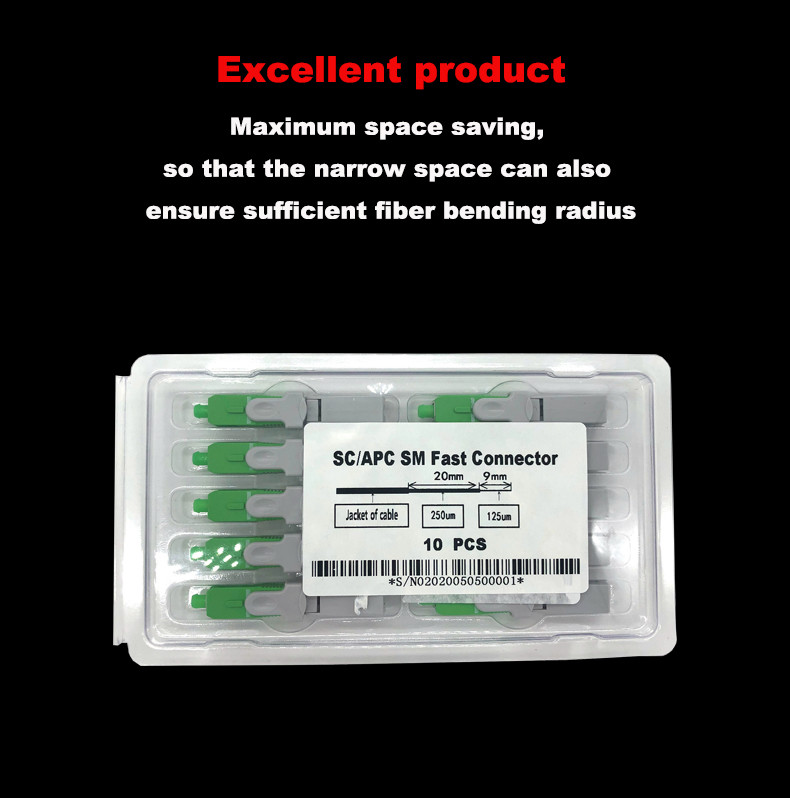

Product Packaging Information

OM1 OM3 FTTH Fast Connector , Field Termination Sc Apc Quick Connector

box

 Size(CM) 44X26X19
QTY(Gift Box/Box) 500
N.W(KG/Box) 5
G.W(KG/Box) 5.2
